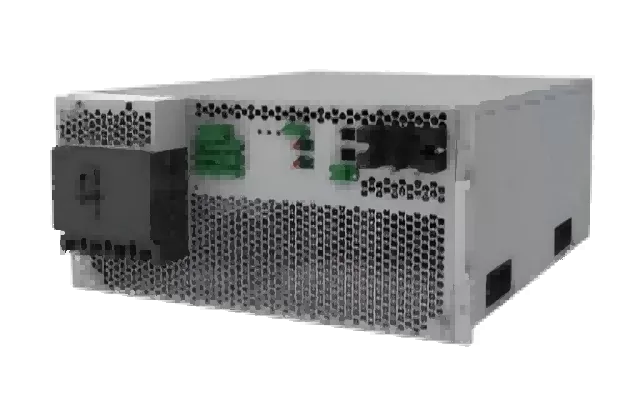

100kWPCS (C series three-arm & four-arm): C series is divided into two types, namely three-arm four-wire and four-bridge arm four-wire. Among them, the three-arm and four-wire products can carry a certain proportion of unbalanced loads and are suitable for standard industrial and commercial dual charging and two discharge peak and valley arbitrage scenarios, with the ultimate cost-effectiveness. The four-arm four-wire product has pure single-phase load capacity and is used in off-grid scenarios, industrial and commercial scenarios with serious imbalances, and Taiwanese scene scenarios. If you choose a four-arm PCS, one energy storage cabinet can adapt to all application scenarios.
100KWPCS (C series four-arm overseas version): It adopts a four-arm design and is specially built for overseas power grid environments. It is suitable for overseas industrial and commercial, optical storage and charging, pure off-grid and other scenarios. It can also be used with our MPPT, STS and other products. It has CE certification and multiple national grid connection certifications (TUV).
Share
Product features
01
The three-phase four-wire design has single-phase and three-phase active and reactive power control functions. At the same time, the four-leg product has pure single-phase load capacity.
02
The AC side accepts 20 units directly connected in parallel (in well network mode).
03
Both drawer-type and side-mounted models are compatible, and front and rear wiring are optional, making the installation more flexible.
04
100% three-phase unbalanced load capacity, perfectly suitable for Taiwan/industrial and commercial/microgrid and other working conditions.
05
Supports seamless off-grid switching function, switching time
06
Equipped with PQ, VF, VSG, and black start functions.
Product principle
| Product model | INPPCS-100/0.4-W-25-C1 | INPPCS-100/0.4-W-X4-C1 | INPPCS-100/0.4-W-X4-C1-OS |
| DC side parameters | |||
| DC voltage range | 600-950V, full load 680V-900V | 600V~950V, full load 630~900V | |
| Rated power | 100kW | ||
| DC maximum current | 177A | 192A | 190A |
| AC side parameters (grid-connected) | |||
| Rated power | 100kW | ||
| Rated voltage | 400V | ||
| Allowable grid voltage range | 400V (-20%~+15%) | 340V~460V | |
| Rated current | 145A | ||
| Output frequency | 50Hz/60Hz±2.5Hz | ||
| Wiring method | Three bridge arms and four lines | Three-phase four-arm | |
| Current total harmonic distortion change | ≤3% | ||
| power factor | -0.99~+0.99 | ||
| AC side parameters (off-grid) | |||
| AC off-grid voltage | 400V | ||
| Output frequency | 50Hz/60Hz | ||
| Off-grid output THDU | ≤3% (linear load) | ||
| Unbalanced load capacity | 100% | ||
| Overload capacity | 1.1 times long-term, 1.2 times 1Min (temperature ≤ 45℃) | 1.1 times long-term, 1.2 times 1Min (temperature ≤35℃) | |
| Communication method | |||
| show | None | ||
| Communication interface | Network port, CAN, RS485 | ||
| protect | Over temperature, input and output over and under voltage, anti-reverse connection, output over current, etc. | ||
| General parameters | |||
| maximum efficiency | ≥98% | ||
| Operating temperature range | -20℃~60℃ (>55℃ requires derating) | -20℃~60℃ (>45℃ requires derating) | |
| Protection level | IP20 | ||
| Altitude | 3000m (2000-3000m needs to be derated) | ||
| relative humidity | ≤95% | ||
| Dimensions (width*depth*height) | W480mm*H260mm*D659mm | ||
| weight | 58kg | 70kg | 70kg |
Related Products
PRODUCT
450kW liquid-cooled energy storage converter module
The liquid-cooled fusion high-voltage box version modular energy storage converter, with a rated power of 450kW, is the core power conversion unit in the energy storage device. It adopts a three-level topology and supports bidirectional energy flow and a wide range of battery voltages. It can be used with multiple types of batteries to meet the needs of different application scenarios and is flexible in installation and use.
View More +
35kW energy storage converter module
This product is a modular converter product tailor-made for small energy storage systems, with a rated power of 35kW. It is the core power conversion unit in the energy storage device. It uses SIC power devices and a two-level topology structure to support bidirectional energy flow and a wide range of battery voltages. It can be used with various types of batteries to meet the needs of different application scenarios, and is flexible in installation and use.
View More +

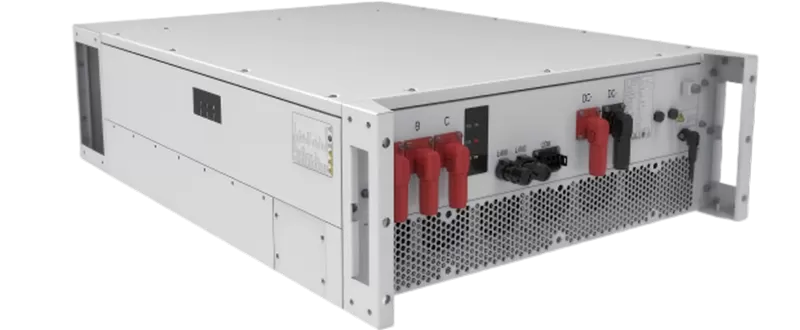

215kW energy storage converter module
