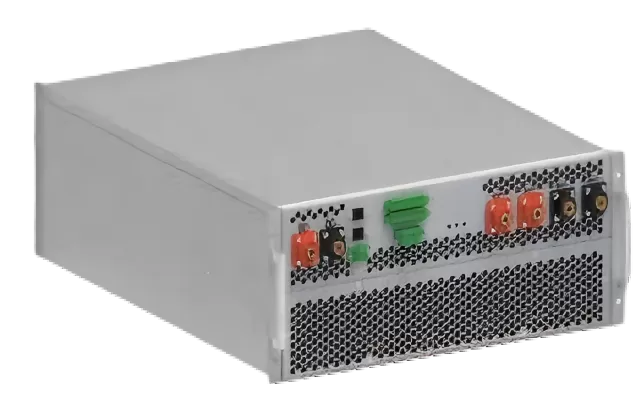

The 65kWDCDC module is a bidirectional current-controllable non-isolated conversion device that connects the low-voltage flow energy storage battery system and the DC bus. During operation, the BAT side voltage is 20V lower than the BUS side voltage. The BAT side can be used to step up the voltage from the BUS side, and the BUS side can be used to step down the voltage from the BAT side.
Share
Features
01
Ultra-low operating voltage, 70V can operate.
02
The maximum current is 600A, suitable for the low voltage and high current requirements of flow batteries.
03
Using SIC power devices, it is small in size and high in efficiency.
04
Perfectly adapted to InBev Electrical PCS module, collaborative control and stable operation.

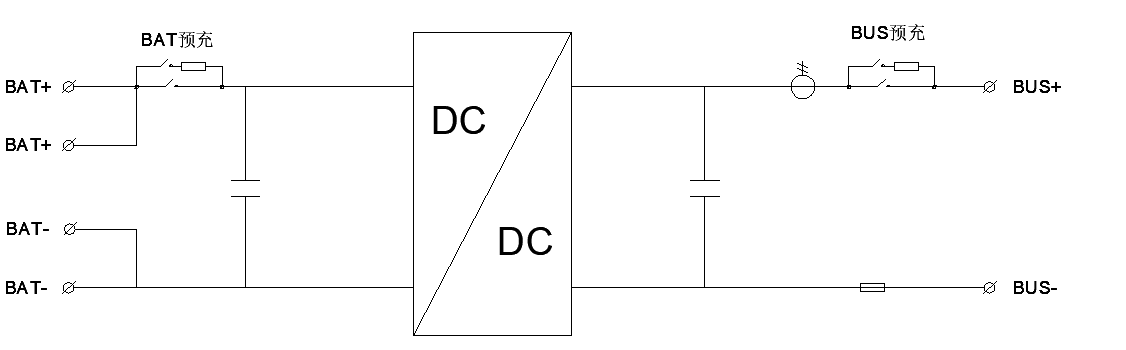

Product principle
| Product model | INPDCDC-150/0.25-W1-A1 | INPDCDC-65/0.1-W1-A1 |
| BAT side DC voltage range (V) | 70-670V | 70-670V |
| BAT side rated voltage (V) | 250V (input current limit below 250V is 600A) | 108V (input current limit below 108V is 600A) |
| Maximum current on BAT side (A) | 600A | 600A |
| BUS high voltage side voltage range (V) | 650~900V | 650~900V |
| BUS high voltage side rated voltage (V) | 670V | 670V |
| Maximum current on BUS side | 230A | 97A |
| Rated power (kW) | 150kW | 65kW |
| Voltage measurement accuracy | 1% | |
| Current measurement accuracy | 1% | |
| Current ripple effective value | ≤2% | |
| Maximum efficiency | ≥99% | |
| Overall machine size | W520mm*D680mm*H200 | |
| IP rating | IP20 | |
| weight | ≤60KG | |
| altitude | 3000m | |
| Cooling method | Forced air cooling | |
