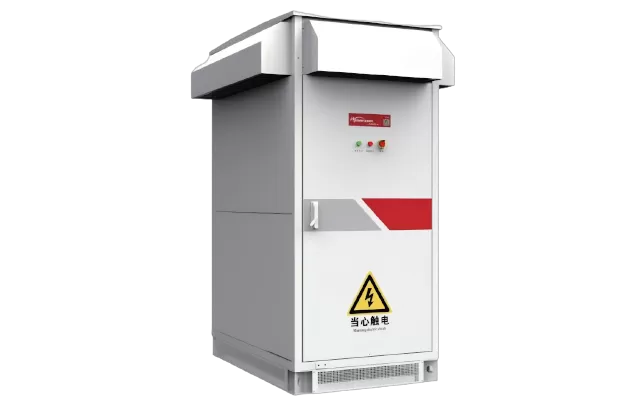

Features
01
PQ, VF, VSG multiple working modes to meet diverse needs; one-click online switching for flexible adjustment.
02
High protection level IP65, anti-corrosion level C4-C5 can be customized, electronic cavity and power cavity are independently designed, efficient and intelligent heat dissipation.
03
Supports network building function, provides inertial support, has damping control function, black start function, and can switch between network following mode and network building mode according to needs.
04
Charge and discharge conversion/power fast response (
05
Modular design of core components makes maintenance easy.
06
It supports low voltage ride through, high voltage ride through, anti-islanding protection, continuous fault ride through, and has strong grid adaptability.
Product principle
| Product model | INP PCS-2000/0.69-OD | INP PCS-2500/0.69-OD |
| DC side parameters | ||
| Maximum DC voltage | 1520Vdc | |
| Rated power | 2000kW | 2500kW |
| DC voltage range | 1000-1520Vdc | |
| Maximum DC current | 2200A | 2750A |
| AC side grid connection parameters | ||
| Rated output power | 2000kW | 2500kW |
| Maximum output power | 2200kW | 2750kW |
| Rated AC voltage | 690V | |
| Maximum AC current | 1841A | 2301A |
| Rated frequency/frequency range | 50Hz/60Hz (+5Hz) | |
| Total current distortion (THD) | ||
| DC component | ≤0.5%ln | |
| power factor | ＞0.99 | |
| Power factor adjustable range | -1~1 adjustable | |
| Output wiring method | 3W+PE | |
| Exchange off-grid parameters | ||
| Rated output frequency | 2000kW | 2500kW |
| Maximum output power | 2200kW | 2750kW |
| Voltage distortion rate | ||
| voltage range | 690V±3% | |
| General parameters | ||
| maximum efficiency | ＞99% | |
| Charge-discharge conversion time | ||
| Working environment temperature | -35~ 60℃ (>45℃ derating) | |
| altitude | 5000m (>3000m derating) | |
| Relative humidity range | 0~95% (no condensation | |
| Protection level | IP65 | |
| Cooling method | Intelligent air cooling | |
| Overall dimensions | W1030mm*D1700mm*H2350mm | |
| weight | 2000kg | 2200kg |
| Communication interface | Ethernet/RS485/CAN | |
| Communication protocol | Standard: Modbus RTU/Modbus TCP /IEC104/CAN2.0B, optional IEC61850 | |
| Meet standards | GB/T34120-2023, GB/T34133-2023 | |
