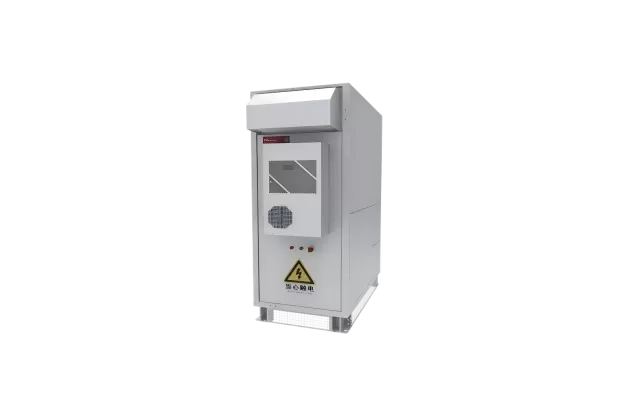

The INPPCS converter can realize AC and DC conversion between the power grid and the battery and complete the two-way energy flow between the two. It is the main actuator and core component of the energy storage system. Through advanced control strategies, the charge and discharge management of the battery system, the charge and discharge power control of the battery energy storage system, the grid-connected/off-grid operating modes and the mode switching function are realized; at the same time, it has complete protection functions, such as islanding protection, DC overvoltage protection and low voltage ride-through, etc., to meet the system connection and off-grid requirements.
Share
Features
01
PO, VF, VSG multiple working modes to meet diverse needs; one-click online switching for flexible adjustment.
02
High protection level IP65, independent design of electronic cavity and power cavity, efficient and intelligent heat dissipation.
03
Supports network building function, provides inertia support, has damping control function, black start function, and can switch between network following mode and network building mode according to needs.
04
Charging and discharging conversion/power fast response (
05
Modular design of core components makes maintenance easy.
06
It supports low-voltage ride-through, high-voltage ride-through, anti-islanding protection, continuous fault ride-through, and has strong grid adaptability.
Product principle
| Product model | INP PCS-1250/0.69-OD | INP PCS-1725/0.69-OD | |
| DC side parameters | |||
| Maximum DC voltage | 1520Vdc | ||
| Rated power | 1250kW | 1725kW | |
| DC voltage range | 1000-1520Vdc | ||
| Maximum DC current | 1375A | 1898A | |
| AC side grid connection parameters | |||
| Rated output power | 1250kW | 1725kW | |
| Maximum output power | 1375kW | 1898kW | |
| Rated AC voltage | 690V | ||
| Maximum AC current | 1151A | 1588A | |
| Rated frequency/frequency range | 50Hz/60Hz(+5Hz) | ||
| Total current distortion (THD) | |||
| DC component | ≤0.5%ln | ||
| power factor | ＞0.99 | ||
| Power factor adjustable range | -1~1 adjustable | ||
| Output wiring method | 3W+PE | ||
| AC side off-grid parameters | |||
| Rated output power | 1250kW | 1725kW | |
| Maximum output power | 1375kW | 1898kW | |
| Voltage distortion rate | |||
| voltage range | 690V±3% | ||
| General parameters | |||
| maximum efficiency | ＞99% | ||
| Charge-discharge conversion time | |||
| Working environment temperature | -35~ 60℃ (>45℃ derating) | ||
| altitude | 5000m (derating above 3000m) | ||
| Relative humidity range | 0~95% (no condensation) | ||
| Protection level | IP65 | ||
| Cooling method | Intelligent air cooling | ||
| Overall dimensions (width*depth*height) | 800mm*1400mm*2250mm | 900mm*1400mm*2350mm | |
| weight | 1200kg | 1400kg | |
| Communication interface | Ethernet/RS485/CAN | ||
| Communication protocol | Standard: Modbus RTU/Modbus TCP /IEC104/CAN2.0B, optional IEC61850 | ||
| Meet standards | GB/T34120-2023, GB/T34133-2023 | ||
